Connect points in graph divided by facet

To do so, specify group attribute in aes() in ggplot2 expression. This would allow points connected in the subplots defined by facet_wrap() or facet_grid().

Working example:

dat <- data.frame(x = rep(1:3, 4),
                  y = c(1:12),
                  individual = factor(c(1,1,1, 2,2,2, 3,3,3, 4,4,4)),
                  type = factor(c(rep("A", 6), rep("B", 6)))
)

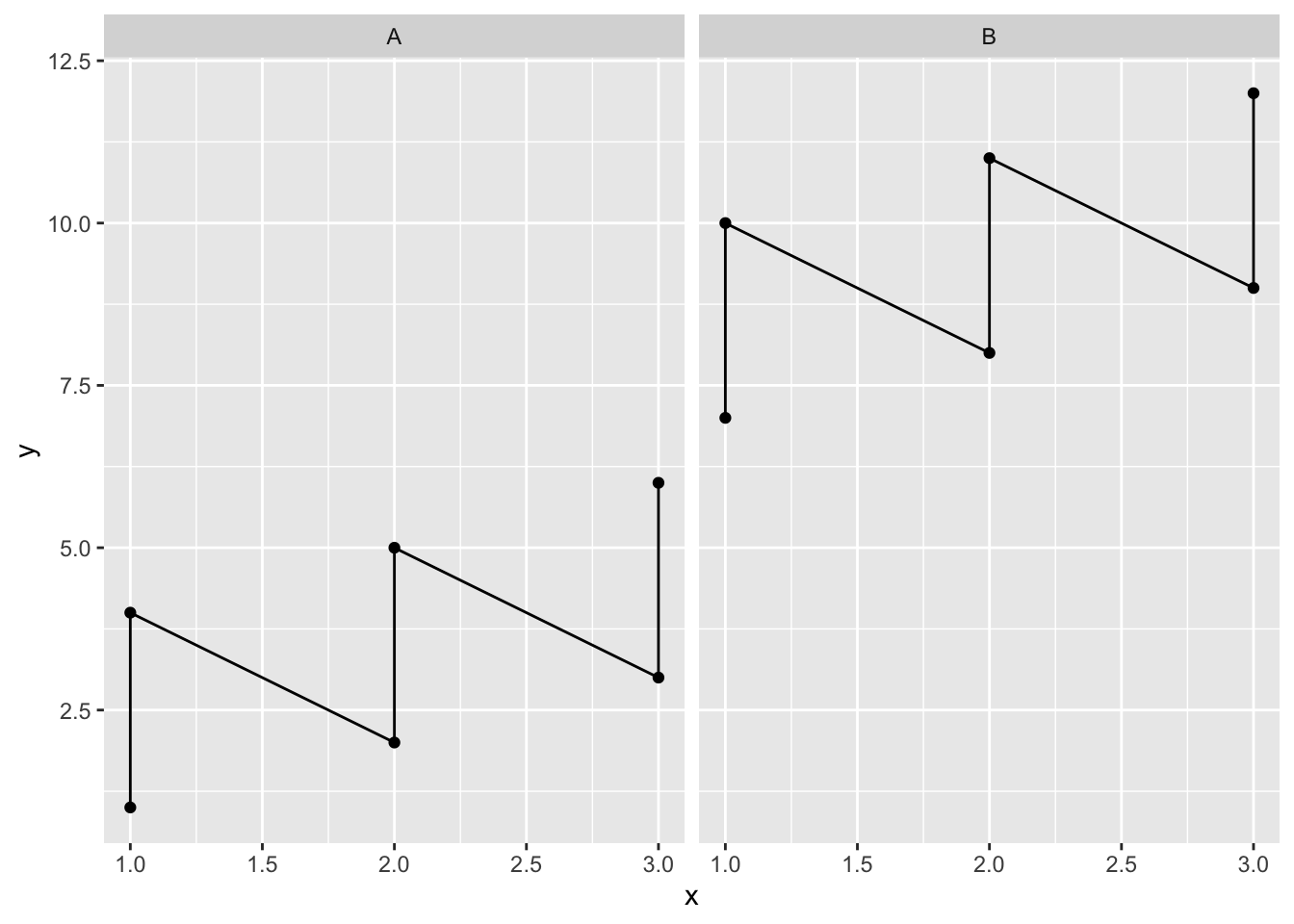

# without specifying group
dat %>% ggplot(aes(x = x, y = y)) +
        geom_point() + facet_wrap(type ~ .) +
        geom_line()

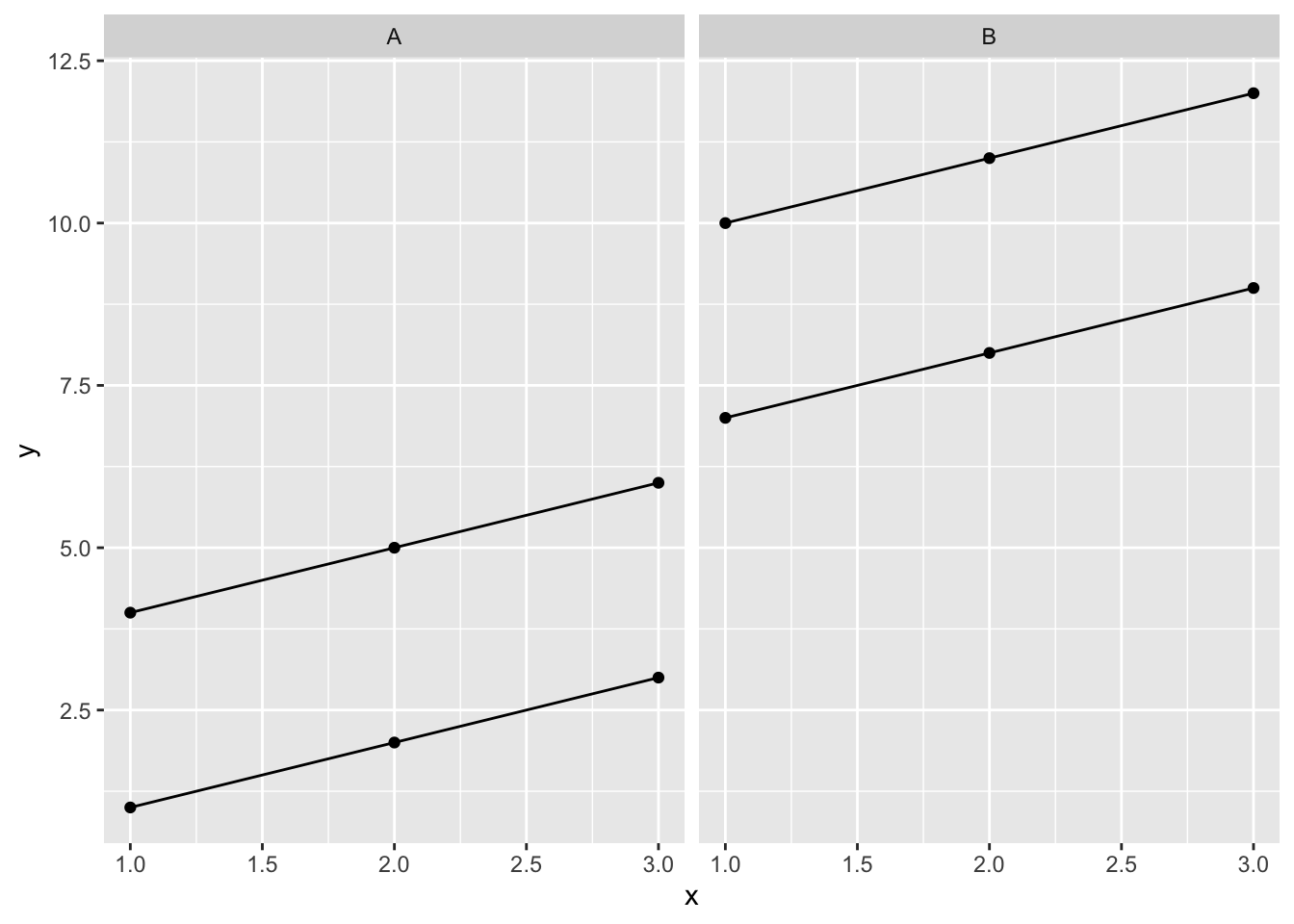

# specify "individual" as grouping variable
 dat %>% ggplot(aes(x = x, y = y, group = individual)) +
        geom_point() + facet_wrap(type ~ .) +
        geom_line()
